1. Each rewinding shaft drive runs independently.

Product Code: XS-DCRJ
Application: Suitable for spooling all kinds of water blocking tape, non-woven fabric, PET, heat sealing tape, copper foil, aluminum foil, paper, cotton paper, flat wire, chemical fiber and other sticky and non-sticky materials.

Features:

1. Vector conversion + PG control is used independently for each axis with more precise control and higher speed.
2. Tension control, using SMC electronically controlled converter + tension float automatic control, the tension is easier to adjust.
3. Independent servo + screw control displacement for each air shaft, with the advantages of high precision, fast speed and stability.
4. Adopting international advanced structure, materials of different widths do not need to be replaced with guide wheels, no ribs. It is convenient and fast to replace materials, and with very high rewinding flatness.
5. The operating system is operated by a microcomputer man-machine interface, and the degree of digitization is high. The modes and parameters such as the width of displacement, the amount of overlap, and the tension can be freely set.
6. The main control system is controlled by a programmable controller PLC and is highly automated.
7. The machine is driven by the synchronous wheel, and the noise is smaller.

Standard technical parameters:

Note: Special parameters can be customized according to customer’s needs.

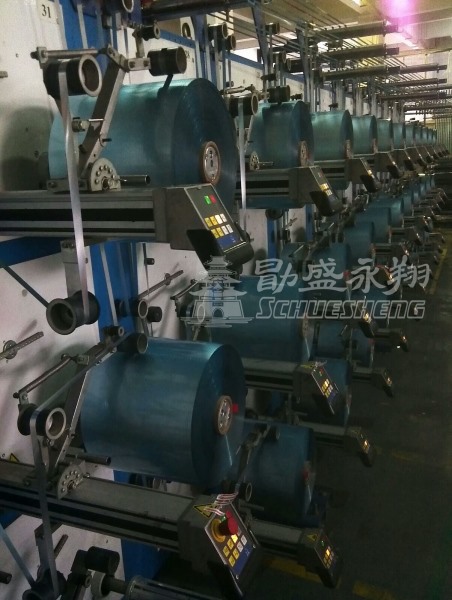

Picture of Type A Multi-spindle Spooling Machine
